Talesun BIPRO, N-type TOPCon bifacial, TM3G48M

Built for Australian conditions

Supreme performance, extreme reliability and high energy yield for decades. The Talesun BIPRO is an N-type TOPCon bifacial solar panel engineered for Australian conditions and stocked by Solar Juice, the B2B wholesale distributor.

View Talesun BIPRO panelsEnquire via Solar Juice
  • 450WUp to, power output
  • 22.5%Module efficiency
  • 25 yrProduct warranty
  • 30 yrLinear power warranty
  • Power the Future
  • Built to Last
  • Supreme Performance
  • Engineered for Endurance

Engineered for endurance

The Talesun BIPRO panel is tested for the most demanding Australian environments

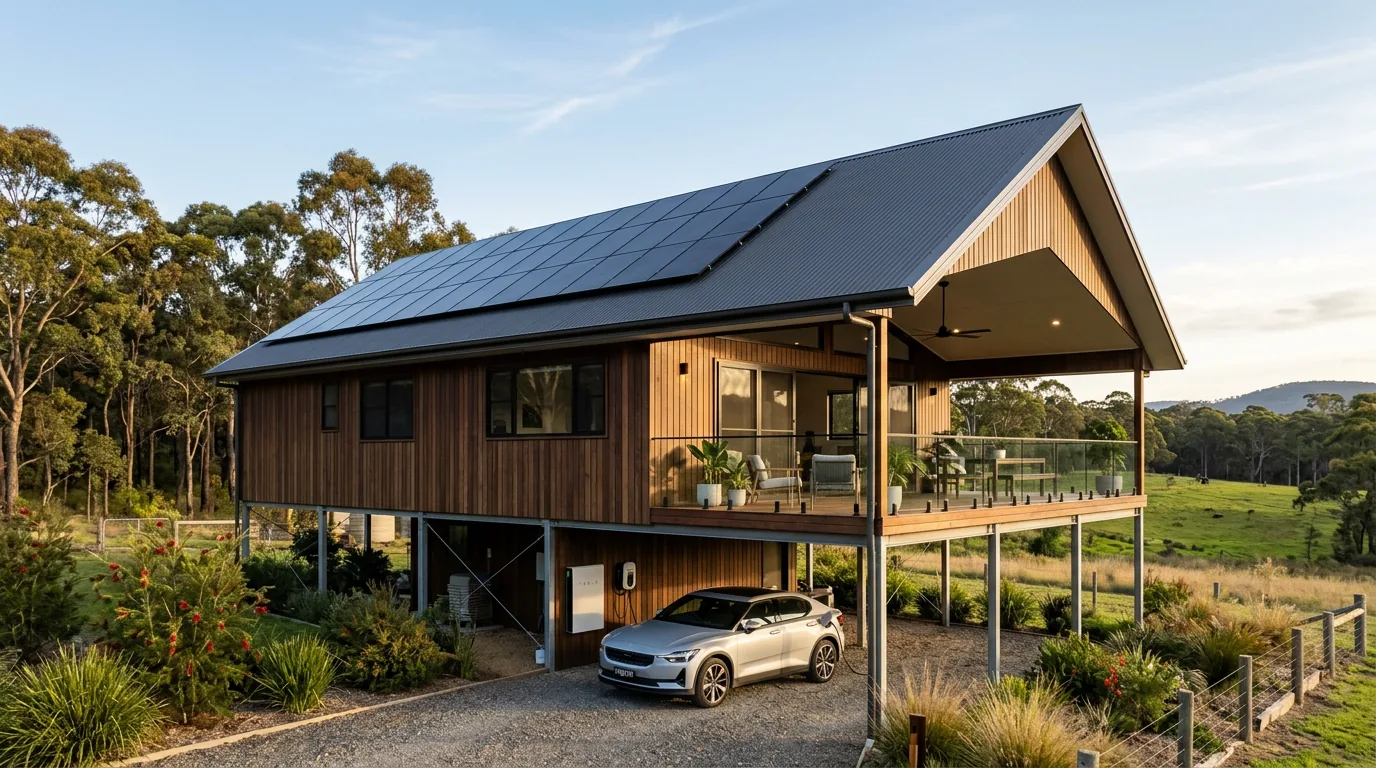

An elevated off-grid family home in regional Australia with a roof full of Talesun BIPRO solar panels
Front view of the Talesun BIPRO solar panel showing its N-type TOPCon cells
  • 22.5%Module efficiency
  • Up to 25%Rear-side power gain

More energy, lower LCOE

N-type TOPCon bifacial performance

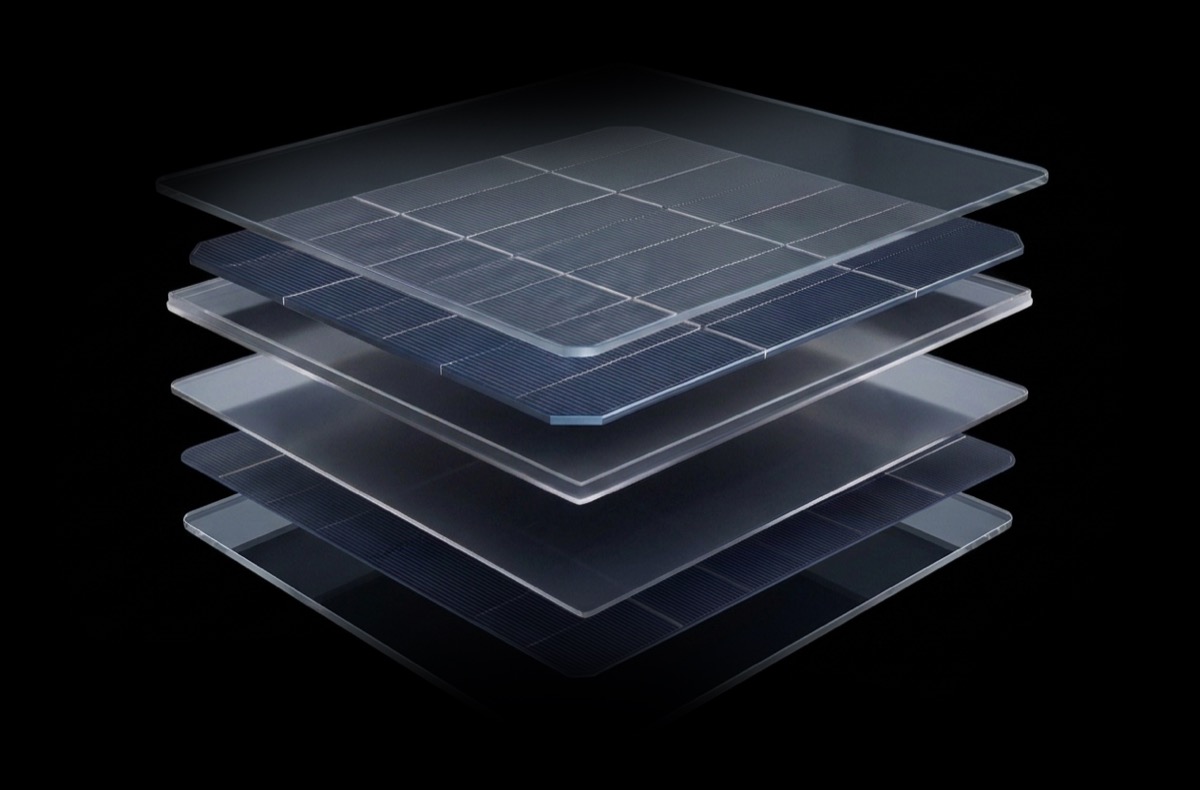

Advanced N-type TOPCon bifacial technology, combined with 16BB half-cut cells, gives the Talesun BIPRO up to 22.5% module efficiency, higher energy yield and greater long-term value across its 30-year service life.

  1. Higher efficiency, lower degradation and better long-term reliability than conventional cells.

  2. Lower LID degradation and noticeably better low-light performance, morning and evening.

  3. Captures additional energy from the rear side, up to 25% extra depending on albedo conditions.

  4. A dual-glass build, 1500V system rating and IP68 junction box give a longer, more reliable service life.

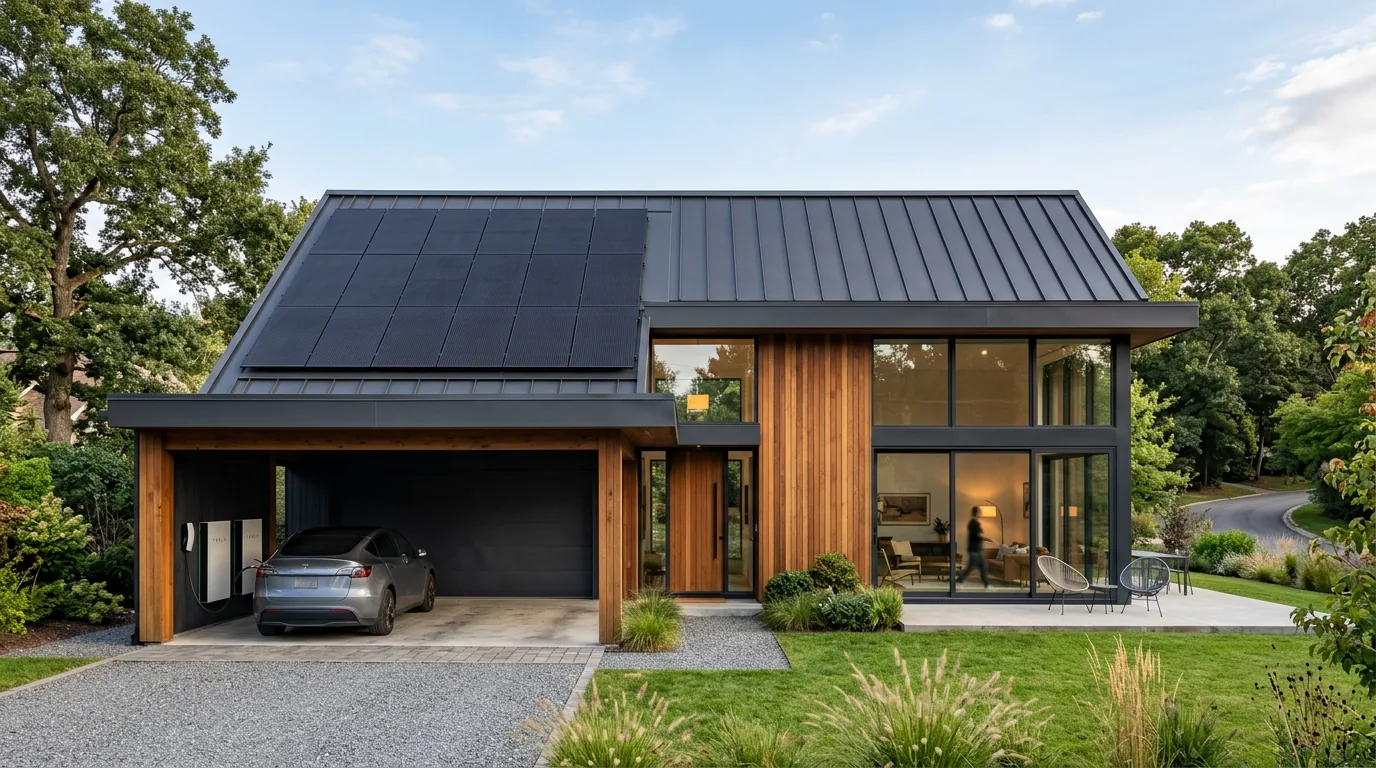

A modern timber-clad Australian home with rooftop Talesun solar panels

TM3G48M, 430 to 450W

Talesun BIPRO specifications

BIPRO model430 W435 W440 W445 W450 W
Electrical characteristics (STC)
Maximum power (Pmax)430 W435 W440 W445 W450 W
Operating voltage (Vmpp)28.92 V29.22 V29.52 V29.79 V30.09 V
Operating current (Impp)14.87 A14.89 A14.91 A14.94 A14.96 A
Open-circuit voltage (Voc)34.76 V34.98 V35.20 V35.42 V35.64 V
Short-circuit current (Isc)15.72 A15.76 A15.80 A15.83 A15.86 A
Module efficiency21.50%21.80%22.00%22.30%22.50%
Mechanical characteristics
Cell typeN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbarN-type mono-crystalline, 16 busbar
Number of cells96 (6 x 16)96 (6 x 16)96 (6 x 16)96 (6 x 16)96 (6 x 16)
Dimensions1762 x 1134 x 30 mm1762 x 1134 x 30 mm1762 x 1134 x 30 mm1762 x 1134 x 30 mm1762 x 1134 x 30 mm
Weight24.7 kg24.7 kg24.7 kg24.7 kg24.7 kg
Front glass2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered2.0mm AR coating, semi-tempered
FrameAnodised aluminium alloyAnodised aluminium alloyAnodised aluminium alloyAnodised aluminium alloyAnodised aluminium alloy
Junction boxIP68, 3 bypass diodesIP68, 3 bypass diodesIP68, 3 bypass diodesIP68, 3 bypass diodesIP68, 3 bypass diodes
ConnectorsMC4 / MC4-EVO2AMC4 / MC4-EVO2AMC4 / MC4-EVO2AMC4 / MC4-EVO2AMC4 / MC4-EVO2A
Operating temperatureminus 40C to 85Cminus 40C to 85Cminus 40C to 85Cminus 40C to 85Cminus 40C to 85C
Max system voltage1500 V1500 V1500 V1500 V1500 V
Fire ratingClass CClass CClass CClass CClass C

Electrical characteristics (STC)

Maximum power (Pmax)
430 W
Operating voltage (Vmpp)
28.92 V
Operating current (Impp)
14.87 A
Open-circuit voltage (Voc)
34.76 V
Short-circuit current (Isc)
15.72 A
Module efficiency
21.50%

Mechanical characteristics

Cell type
N-type mono-crystalline, 16 busbar
Number of cells
96 (6 x 16)
Dimensions
1762 x 1134 x 30 mm
Weight
24.7 kg
Front glass
2.0mm AR coating, semi-tempered
Frame
Anodised aluminium alloy
Junction box
IP68, 3 bypass diodes
Connectors
MC4 / MC4-EVO2A
Operating temperature
minus 40C to 85C
Max system voltage
1500 V
Fire rating
Class C

25-year product and 30-year power warranty

  • 25 yrQuality assurance
  • 30 yrLinear power warranty
  • ≤ 1%Max first-year degradation
  • ≤ 0.4%Linear degradation per year
  • 87.4%Power retained at year 30

Certified and quality assured

The Talesun BIPRO panel is independently tested and manufactured to international standards, so you can specify it with confidence.

  • IEC 61215
  • IEC 61730
  • UL 61730
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • CE
  • DEKRA Type Approved

Available now

Talesun BIPRO 450W bifacial panels from Solar Juice

The Talesun BIPRO TM3G48M range (430W to 450W), in stock and supported by Solar Juice, the wholesale distribution team.

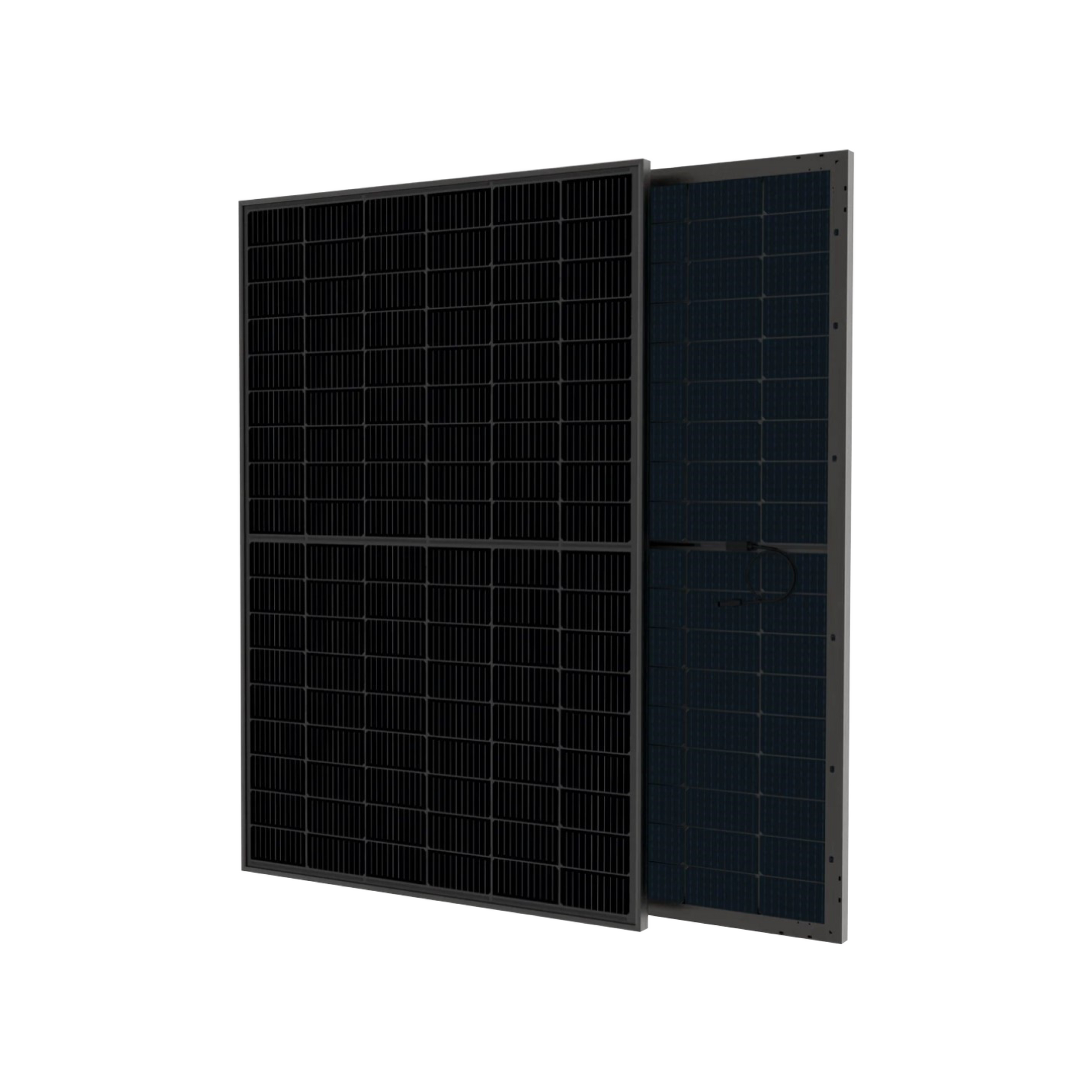

Talesun 450W bifacial N-type solar panel with a black frame, front and rear450W

TM3G48M-450

Talesun N-type Bifacial 450W, Black Frame

Bifacial N-type, black frame, 30mm, 1500V, EVO2 connectors, 1.4m lead, 25-yr product warranty. TM3G48M-450, IEC 61215-2021.

  • CellN-type TOPCon bifacial
  • Efficiency22.5%
  • Warranty25 yr + 30 yr power
View the 450W panel on Solar JuiceBuy the 450W panel at Solar Outlet
Talesunstocked by

Stocked and supported by Solar Juice

Talk to the Solar Juice wholesale team about Talesun BIPRO bifacial solar panel availability, volume pricing and delivery across Australia.
